BIZON BS-D7T
revolutions: 1700 rpm
direction: right/left
torque: 7 Nm
Drill chuck: 10 mm
actuation type – trigger
working pressure: 6.5 bar
air consumption: 0.55 m3/min.
noise level: 76 dB
weight: 0.9 kg
dimensions WxLxH: 43x205x184 mm
Categories
- Staples / Staplers
- Nails / Nail guns
- Pins and brads / Pinners and bradders
- Screws
- Screwdrivers/drills, wrenches, grinders, bits, saw blades
- C-ring
- Zig-zag spring clips
- T - nuts
- Special fasteners
- Automation – Machine construction
- Modular staplers and nailers for machines
- Attachments and improvements for hand operated tools
- Upholstery tables and pallet jigs
- Framing equipment and accesories
- Pneumatic accessories
- Wood glues and sponges
- Glues and guns
- Wire
- PP shopping bands and accessories
- Stretch Films

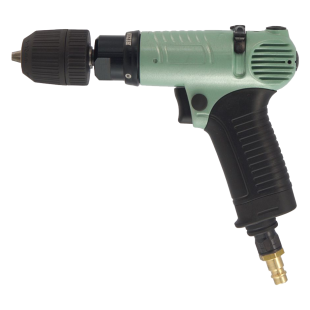

BIZON BS-D7T drill
– quiet operation
– durability, excellent power-to-weight ratio of tools
– insulated, soft to the touch and well-shaped handle
– convenient rotation direction switch (also for left-handed people)
– handle for hanging on the balancer
Files to download
-
pdf
service diagram
Download
